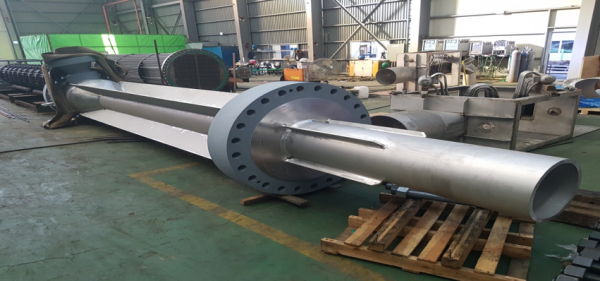

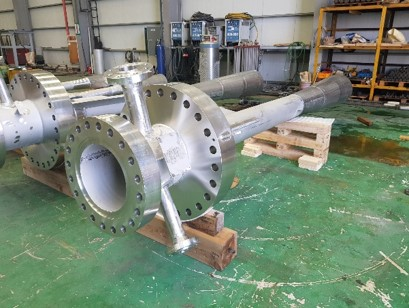

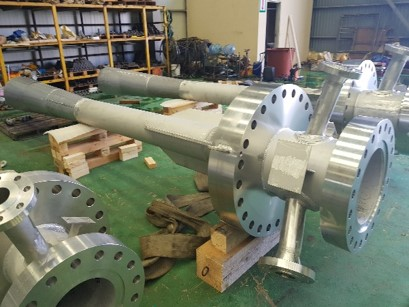

Large Reaction Mixer

- Stainless Steel(316L Gr.)
- ID 6"/14" x L 3,118mm x T 10mm(Min)
- Head/ Jet / Tube / Diffuser

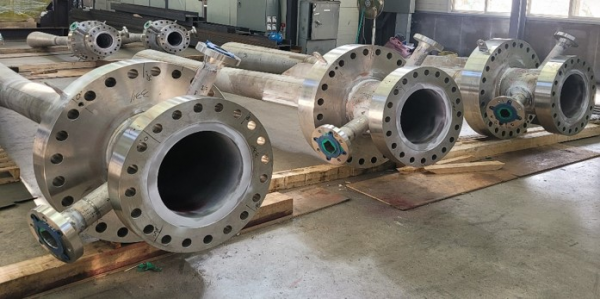

Small Reaction Mixer

- Stainless Steel(316L Gr.)
- ID 3"/6" x L 3,958mm x T 8mm(Min)
- Head/ Jet / Diffuser / Autoclave

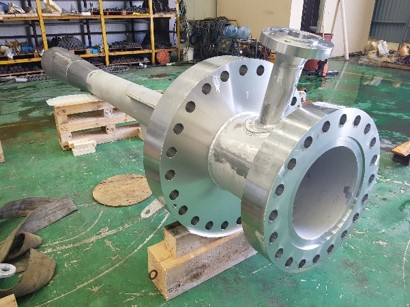

Reaction Mixer II

- Stainless Steel(316L Gr.)
- ID 10"/20" x L 4,912mm x T 11mm(Min)
- Head/ Jet / Tube / Diffuse

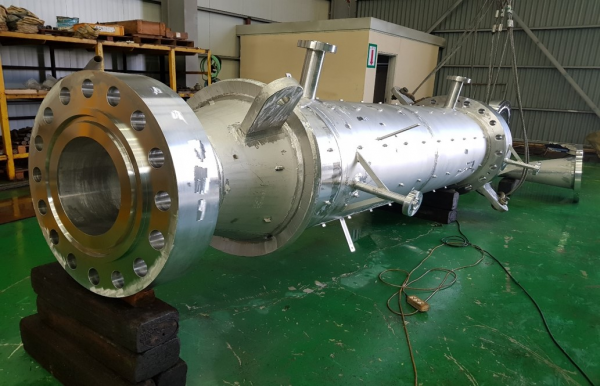

Material

A240-316L (Shell & Mixer Jet)

Dimension

711.2mm (O.D) X 7,656mm (L)

Total Weight

1.4 ton

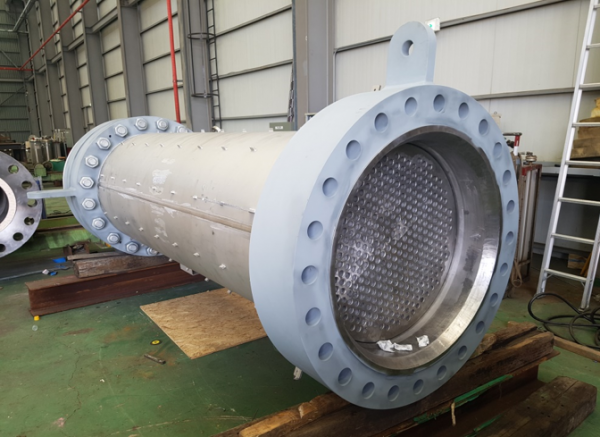

Reaction Filter

- A240-316L (Shell & Mixer Jet)
- 316L (ASTM or DIN EN EQ.)
- ID 800 mm x L 3,213.4 mm
- 295 EA ELEMENT Install (Material: Free Issued)

Large Reaction Mixer

Stainless Steel(316L Gr.)
ID 8"/14" x L 3,100mm x T 8mm(Min)
Head/ Jet / Tube / Diffuser

Small Reaction Mixer

Stainless Steel(316L Gr.)
ID 4"/6" x L 3,958mm x T 5mm(Min)
Head/ Jet / Diffuser / Autoclave

Reaction Mixer II

Stainless Steel(316L Gr.)
ID 14"/20" x L 4,905mm x T 8mm(Min)
Head/ Jet / Tube / Diffuse

Material

A240-304L (Shell & Filter Bundle)

Dimension

921mm (I.D) X 4,500mm (L)

Total Weight

35 ton

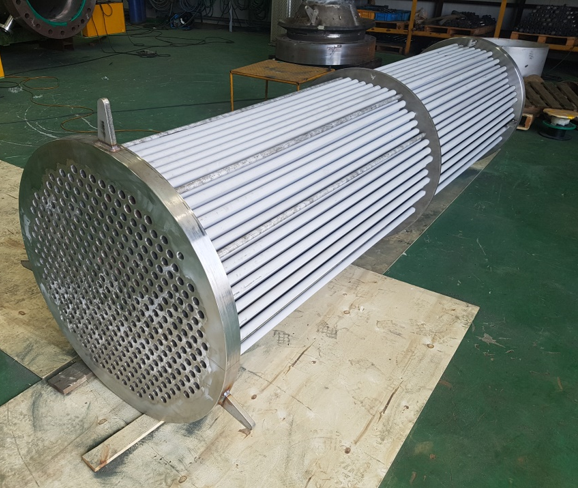

Material

A240-304L (Shell & Filter Bundle)

Dimension

813mm (I.D) X 7,200mm (L)

Total Weight

7 ton
